Generating a Single Binary for Missile Command

The Missile Command ROM set has 7 files in it, but it's a lot easier to disassemble if you have all of the program ROM in one. The MAME data file specifies their locations like this:

Filename Size Region Offset
035820-02.h1 2048maincpu5000
035821-02.jk1 2048maincpu5800
035822-03e.kl1 2048maincpu6000
035823-02.ln1 2048maincpu6800
035824-02.np1 2048maincpu7000
035825-02.r1 2048maincpu7800
035826-01.l6 32 proms 0

We're only interested in the "maincpu" items.

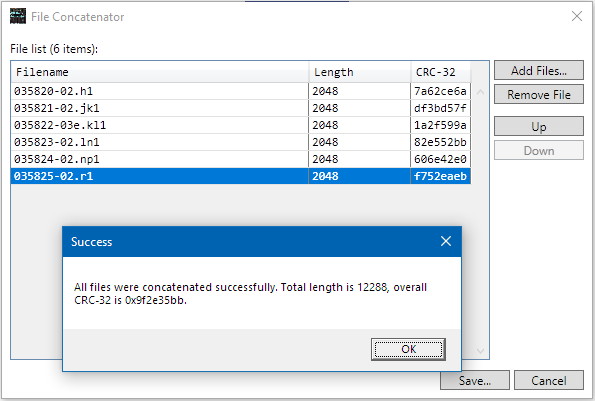

Launch SourceGen, select Tools > Concatenate Files. Navigate to the Missile Command ROM directory, and add the first six items listed above (just select all the files that appear to be 2K in size). Use the Up / Down buttons to arrange them in the order shown above. Click Save and save it as "MissileCommand". It should look something like this:

concat dlg
